Photovoltaic ground pile

Hebei Jida Heavy Industry Machinery Co., Ltd. 01

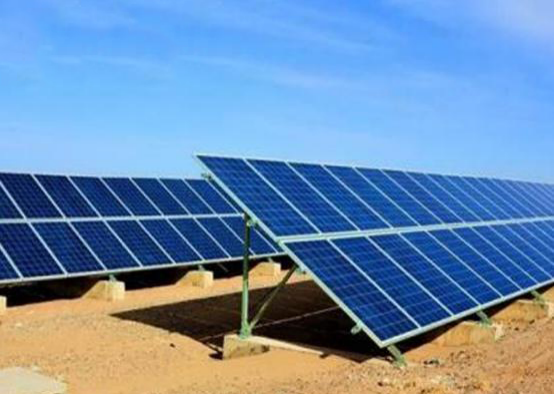

Spiral ground pile is a new type of solar photovoltaic supporting product, which is suitable for major solar photovoltaic, wind energy and construction industries, such as solar power station pile foundation, billboard pile foundation, flag pile foundation, wooden house pile foundation, etc. it is suitable for all kinds of geology, such as clay, Gobi Desert, gravel, etc. its high load performance, stability, settlement resistance and tensile pullout resistance, Deeply favored by peers in the industry.

Spiral anchor is also called spiral pile and hot-dip galvanized spiral pile

Product specification and material

Outer diameter 60mm --- 3000mm carbon steel inner diameter 20mm --- 2500mm alloy steel

Pitch 60mm --- 3000mm stainless steel thickness 1.0mm --- 60.0mm

Details:

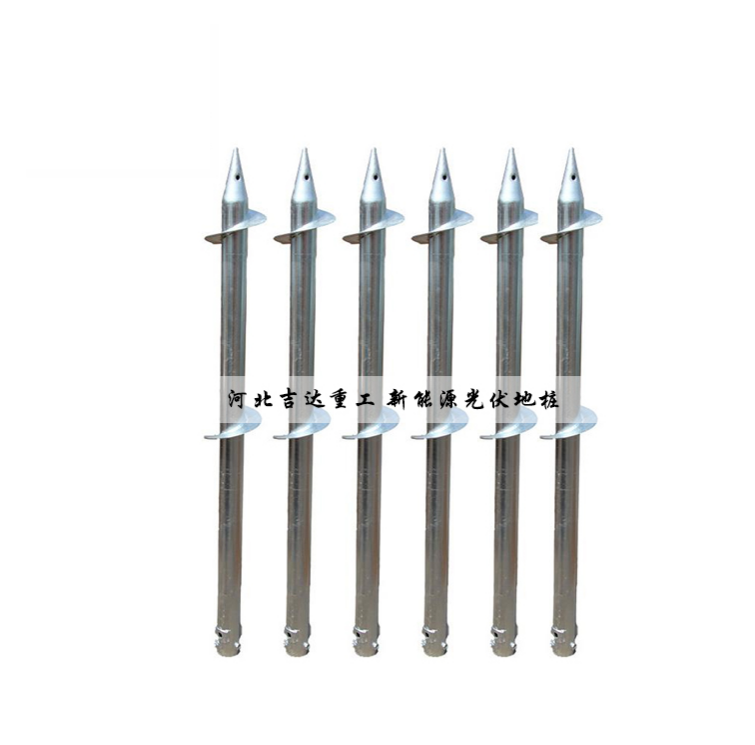

Photovoltaic solar spiral ground pile is a kind of spiral drilling ground pile. Its characteristics include that the drill bit is connected with the drill pipe, and the drill bit or drill pipe is connected with the joint introduced by two power sources. After being placed underground, the photovoltaic solar spiral ground pile is no longer taken out and can be directly used as a pile.

The drill bit of the photovoltaic solar spiral ground pile includes a spiral drill bit at the bottom.

Specific structure:

1. Steel pipe is selected for the middle part

2. The top is a connecting pipe

3. The drill pipe of photovoltaic solar spiral ground pile includes the upper connecting pipe

4. Steel rod in the middle part

5. Lower connecting shaft

6. After the pile is driven underground, it is no longer taken out, but directly used as a pile.

On the basis of "end bearing pile" structure and "friction pile" structure in the process of building construction, it is widely used in the construction of a variety of ground piles, ground anchors and randomly constructed ground piles.

You can call us to provide customized services for various conventional and unconventional photovoltaic solar spiral ground piles.

Length (mm) diameter (mm) material

1450 ø 140 hot dip galvanized steel 1400 ø 114 hot dip galvanized steel

2000 ø 89 hot dip galvanized steel 1200 ø 89 hot dip galvanized steel

1600 ø 76 hot dip galvanized steel 800 ø 76 hot dip galvanized steel

650 ø 66 hot dip galvanized steel
